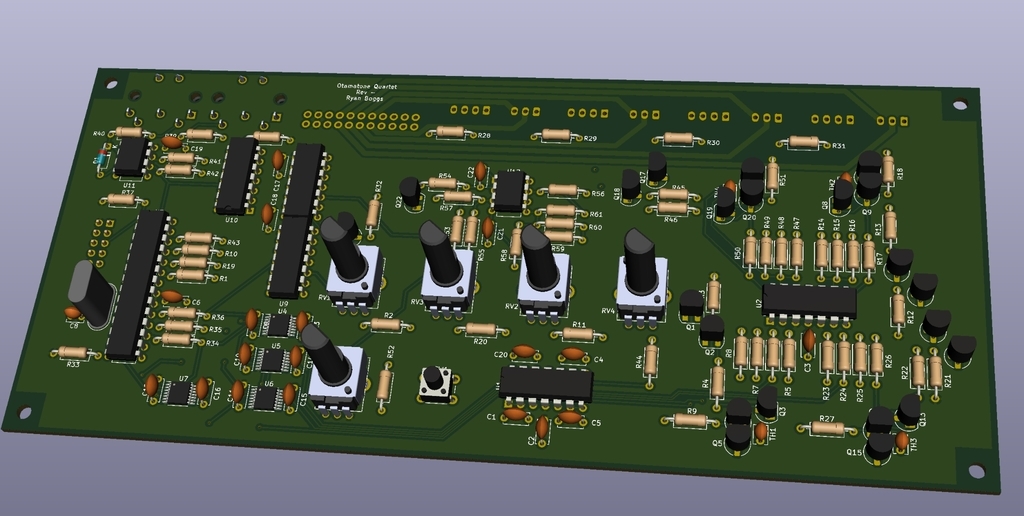

Next Big Project PCB Routed!

This one took me sooo many hours to route all the traces in a way that I was comfortable. I even had to resort to making it a 4 layer PCB which is a first for my electronics hobby (though not for my profession).
